CT Chamber complete with Certs, CTs & CT Wiring Loom (Free Delivery)
In stock & ready to be shipped next day.

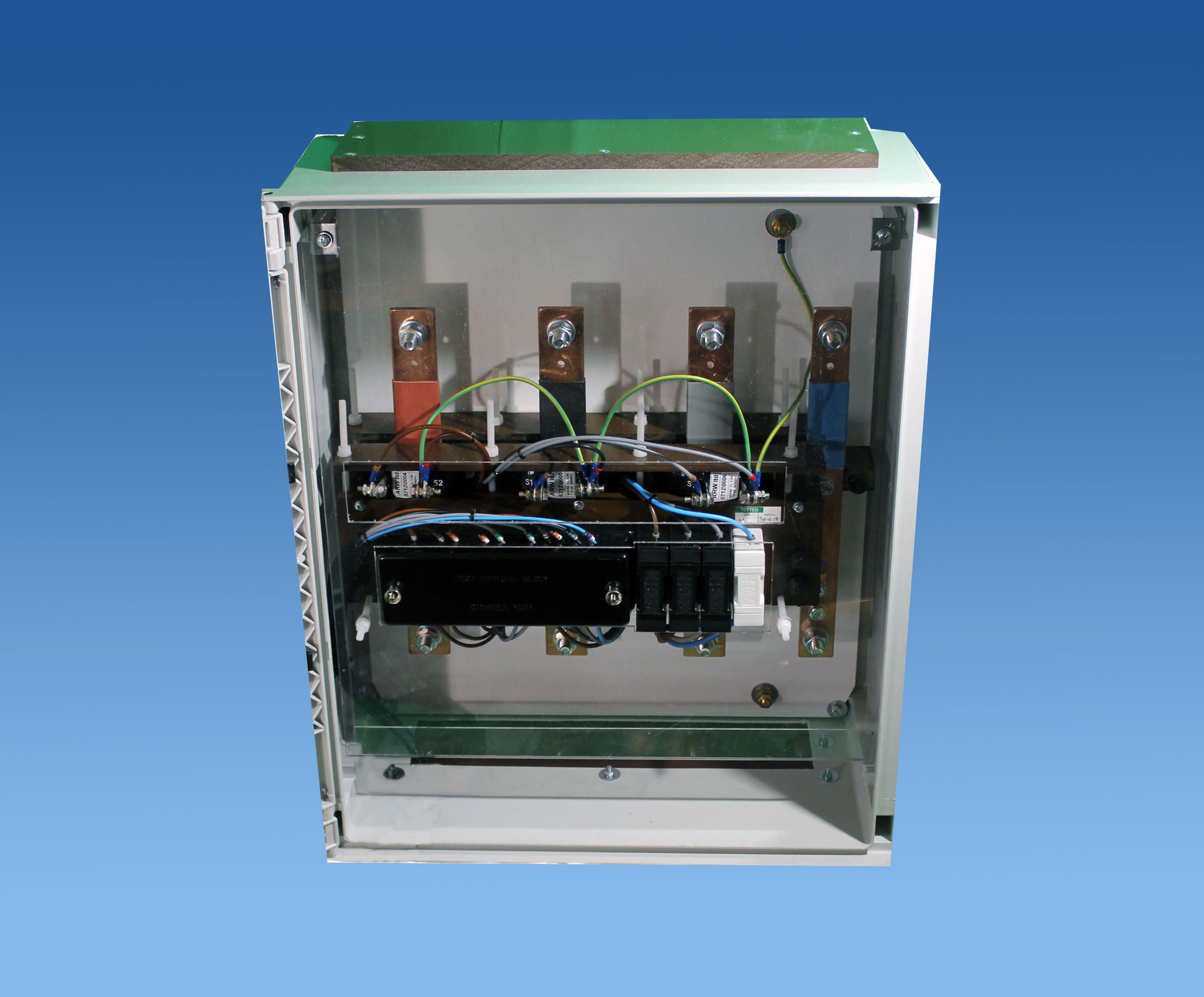

Our standard CT chamber is designed for installations up to 400Amp where direct whole current metering connection is not possible.
All our CT Chambers come prebuilt with test block, metering fuse and neutral links, preinstalled and identified wiring loom and a set of tested CTs with manufacturer and installation certificates.
The Chambers are designed for a typical bottom supply entry and top exit, although this can be reversed if required.
A choice of 200/5 or 400/5 CTs is available.
Our 200/5 and 400/5 CTs are class 0.5 with a 5VA (200/5) or 7.5VA (400/5) burden.
Unlike our competitors you aren’t buying an empty chamber. When you buy through us, you get everything included ready to install.
UK Delivery is included free of charge to mainland post codes.
Connection to the incoming and outgoing busbars is made with an M12 stud.
Metering is connected to the live supply and CTs via the prewired and identified loom
GRP enclosure to IP66 with removable non conductive top and bottom gland plates
Sealable front cover and test block
Transparent inner screen

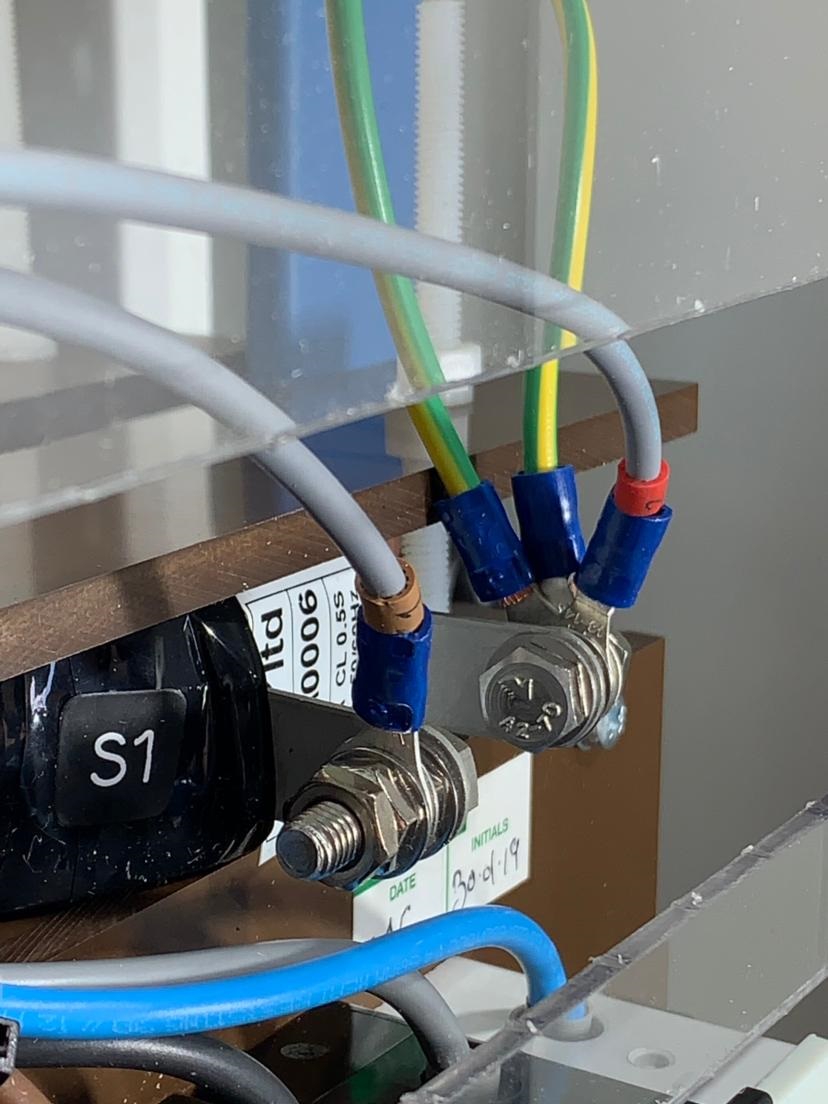

Preinstalled CTs and metering wiring looms

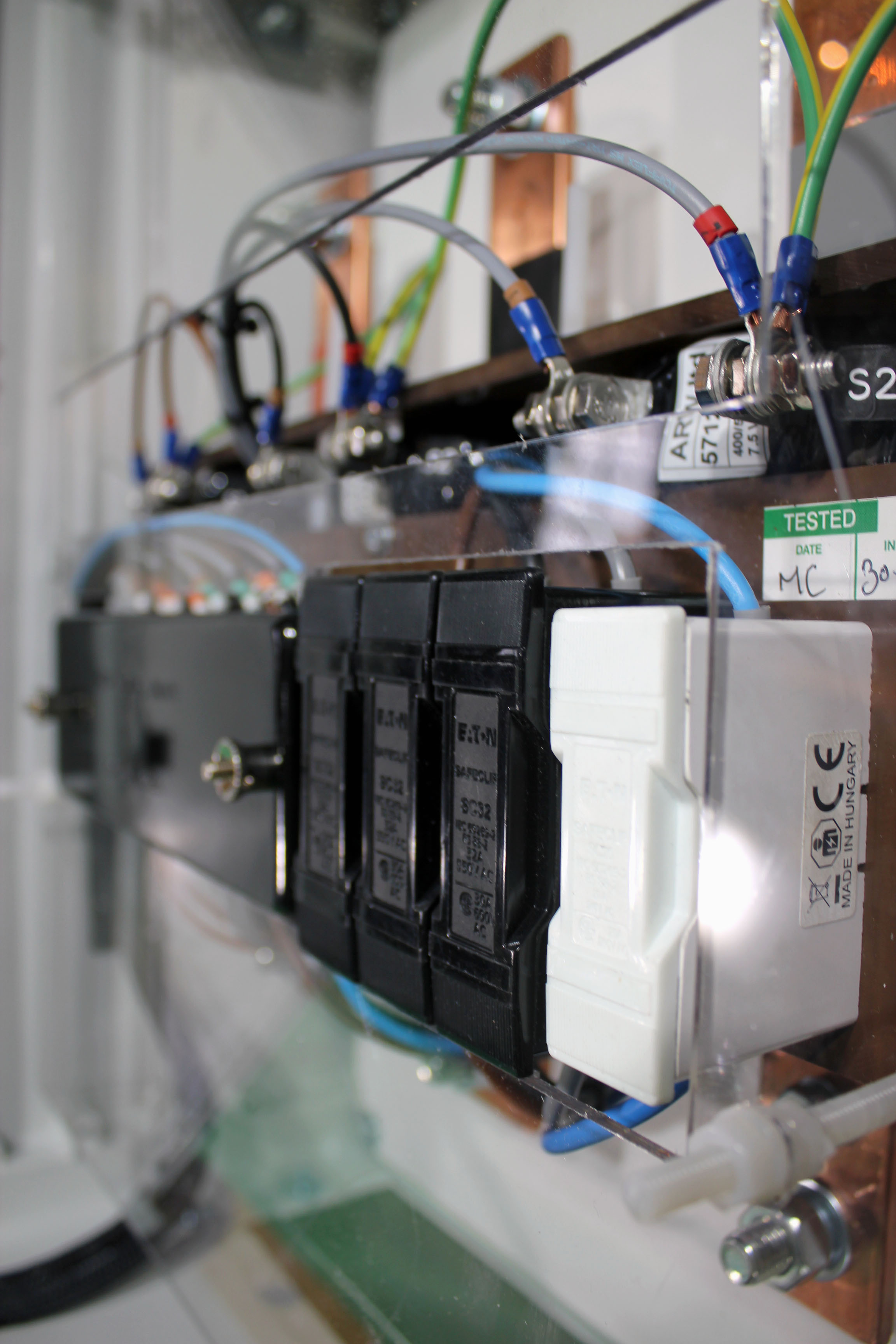

Testblock and fuselinks installed and prewired
